Great solution for combination boxes and other electrical panels where our traditional clamp sensors don't fit!

Specifically made for the 3-phase Emporia Vue 3, these flexible sensors are designed for split phase 120/240V North American Homes or 240V single phase power.

Emporia highly recommends that flexible sensor installation be performed by a licensed electrician or other qualified professional.

Requires installation of an included alternative power supply for the flexible sensors.

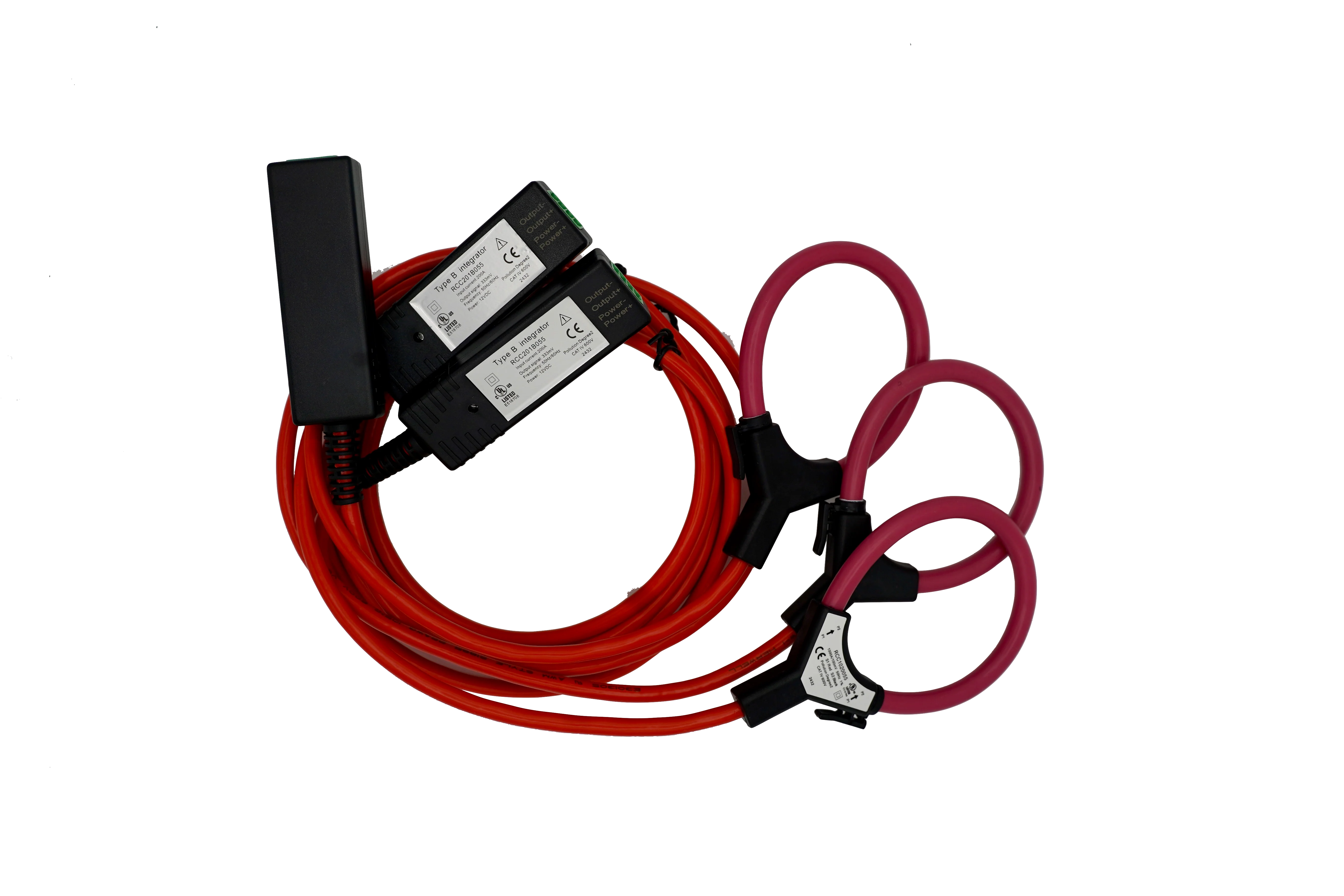

• Replaces traditional CT clamps with a current sensing Rogowski cable
• Can be used to measure current around busbars in some electrical panels where main cables are not accessible
• Accurate energy monitoring
• Plugs into ports 1, 2, or 3 of your Gen 3 Emporia Vue
• Maximum Current: 200A

• Integrator input voltage: 12V DC

• Power supply output voltage: 12V DC, regulated
• Power supply input voltage: 100-240V AC

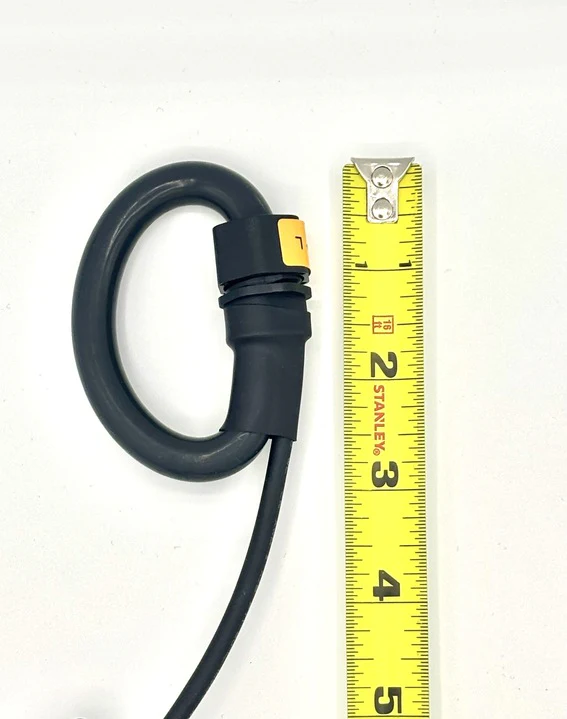

THIC 200A flexible sensor dimensions:

• Coil window diameter: 55mm
• Coil cable diameter: 7mm
• Cable Length: 1M

THIC Power supply dimensions:

• 39.5mm x 91mm x 28.5mm

Deyo Tech 200A flexible sensor dimensions:

• Coil window diameter: 60mm
• Coil cable diameter: 12mm
• Cable Length: 1.05M

Deyo Tech Power supply dimensions:

• 37mm x 92mm x 39mm
